Utilizing GMSL for High-Bandwidth Robotic Vision Applications

Vision is crucial for designing robotic applications that perceive and adapt to the physical world in real time. Robotic systems operate in dynamic, often unpredictable environments where sensor data must be captured, transmitted, processed, and translated into action within milliseconds. Any added latency, data loss, or timing inconsistency can degrade performance and even create safety risks.

These constraints are becoming more demanding as robotic systems shift toward machine-learning-based perception that relies on large volumes of visual data rather than task-specific programming. This enables adaptability in robotic applications, allowing them to perceive new objects, environments, and tasks with minimal reprogramming.

These trends place increasing pressure on how visual data is transported within robotic systems. Gigabit Multimedia Serial Link (GMSL) technology can help address design challenges by simplifying sensor connectivity, reducing cabling complexity, and enabling low-latency, robust data transmission between distributed cameras and central compute modules.

Originally designed for automotive applications like Advanced Driver Assistance Systems (ADAS), GMSL is widely used in robotics and machine vision systems to connect remote cameras and sensors with low latency and strong immunity to electromagnetic interference.

Developed by Analog Devices, Inc., GMSL is a high-speed, serializer/deserializer (SerDes) communications technology that enables the transmission of high-bandwidth video and data over a single coaxial or twisted-pair cable. Instead of sharing a network fabric, each camera operates over a dedicated high-speed link, eliminating contention, routing, and packet-based variability. This creates a predictable data path where timing and latency remain consistent, even as sensor count increases.

A GMSL serializer takes groups of pixel data that would normally be transmitted in parallel across multiple signal lines and converts them into a continuous high-speed serial stream. At the processor side, a deserializer converts it back into its original format. Because each camera has its own point-to-point link, bandwidth scales linearly with the number of cameras without introducing network contention, switching overhead, or packet scheduling delays.

The benefits of this approach are more pronounced as vision systems scale to multiple high-resolution cameras. Unlike single-camera applications, these systems require dense, synchronized visual coverage to support tasks such as navigation, manipulation, and real-time scene understanding. As the number of sensors increases, so does the burden on bandwidth, cabling, and timing precision, revealing the limits of traditional short-reach, board-level interconnects.

Conventional approaches such as USB, standard Ethernet, or direct board-level MIPI links come with tradeoffs in latency, synchronization, or physical reach. The result is a growing integration challenge as more cameras increase the complexity of wiring, timing management, and system design.

Compared with other vision connectivity approaches, GMSL offers several distinct advantages:

• It extends beyond MIPI CSI-2 in range and robustness while maintaining a simple, low-latency, point-to-point architecture that avoids the complexity of Ethernet-based vision stacks.
• GMSL favors deterministic, point-to-point connectivity and simpler multi-camera synchronization over the large-scale, distributed network flexibility of Ethernet.
• Performance is broadly comparable to FPD-Link, another proprietary SerDes option, with selection between the two often driven by ecosystem considerations.

GMSL balances embedded and networked vision systems by providing a practical approach to high-speed camera connectivity with deterministic, low-latency performance. This simplifies high-speed vision connectivity while maintaining the strict latency and reliability requirements for real-time robotic systems.

High speed, high volume

These architectural advantages are critical as camera resolution and sensor count continue to grow. GMSL can move large amounts of data, particularly video, over a single cable and from multiple cameras or other sensors. It utilizes a dedicated point-to-point link with no network contention or packet routing. Instead of using multiple connections for each point, designers can use GMSL to carry high-bandwidth streams over coaxial or twisted-pair cables while maintaining low latency and strong noise resistance.

The technology simplified automotive wiring and improved robustness, and those same characteristics translate directly to robotics: Fewer cables simplify electrical and mechanical design, resulting in lighter, more reliable systems and easier assembly. Distributed cameras can be placed far from the compute module, connected with minimal cabling, and still reliably deliver synchronized, low-latency data that supports real-time perception and decision-making.

Robots increasingly rely on multiple high-resolution cameras, sometimes combined with depth sensors or LiDAR (light detection and ranging), to comprehend their surroundings (Figure 1). Each camera singly can generate a large stream of data, and when several are used together, the bandwidth requirements can be staggering. One camera with 1080p resolution at 30 frames per second (fps) with 24 bits per pixel generates 1.4 Gbps, so four cameras would amount to 5.6 Gbps, and six would add up to 8.4 Gbps. Higher-resolution, higher-frame-rate applications could push bandwidth requirements into the tens of gigabits per second.

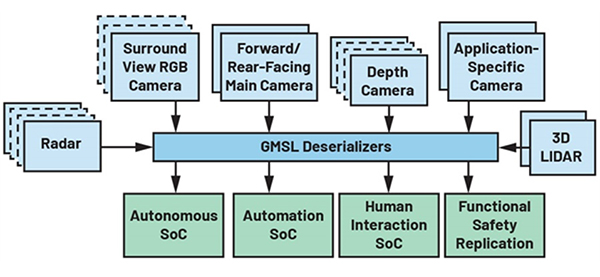

Figure 1: Illustration of a multimodal robotic vision system enabled by GMSL that can process image data from multiple cameras and other sensors to enable robotic perception. (Image source: Analog Devices, Inc.)

Supporting this data volume reliably requires a transport architecture that scales predictably without introducing timing uncertainty. GMSL's deterministic and low-latency links ensure multiple cameras stay synchronized and deliver data predictably, making it practical to develop applications with multi-camera perception without overwhelming the system or introducing timing uncertainty.

Practical considerations

Robotics systems are advancing as companies shift toward versatile platforms that can perceive, manipulate, and make autonomous decisions. Humanoid robots like Tesla's Optimus depend on real-time camera networks with multiple synchronized, high-resolution video streams to navigate and interact with complex environments.

Robotic vision increasingly uses distributed sensor arrays for real-time navigation and manipulation, requiring tight synchronization and reliable connectivity. As sensing demands grow, applications must increase sensor count and resolution without straining computing resources or causing timing issues. These requirements are implemented through edge and aggregation devices that bridge image sensors and compute platforms to maintain low-latency, synchronized data vital for autonomy.

At the edge of the system, devices such as ADI's MAX96717 GMSL2 serializer serve as the interface between image sensors and the transport link (Figure 2). Positioned directly behind the camera, it takes high-bandwidth MIPI CSI-2 camera data and converts it into a high-speed serialized link for transmission over long-distance automotive-style cabling. The device supports forward link data rates of 3 Gbps or 6 Gbps, with a reverse control channel at 187.5 Mbps, and accepts up to four MIPI CSI-2 lanes at 2.5 Gbps per lane.

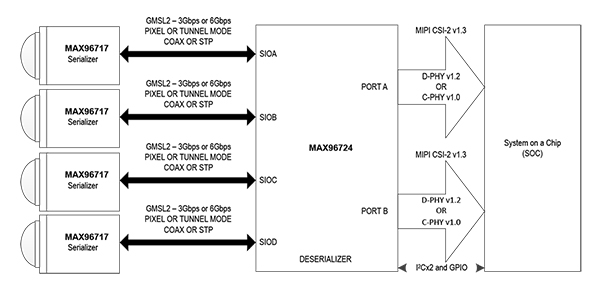

Figure 2: In this schematic, four MAX96717 devices convert parallel data streams from separate camera sensors into a serialized signal that is transmitted over a GMSL2 link to the MAX96724 deserializer, which aggregates and converts it into MIPI CSI-2 to deliver aggregated and synchronized image data to a central processor. (Image source: Analog Devices, Inc.)

The serializer handles the real-time formatting and transmission of raw camera output into a long-reach GMSL2 link, while preserving frame integrity, control signaling, and synchronization metadata. It transforms a tightly coupled image sensor into a remote sensing node that can be placed anywhere on the robot, enabling multiple cameras to be distributed across a robotic platform without being constrained by short-range interconnects.

On the receiving side, a multi-link GMSL2 deserializer such as ADI's MAX96724 aggregates multiple remote camera streams into a single, synchronized interface hub. The device enables scalable multi-camera perception without increasing system complexity, and aggregates multiple GMSL2 camera streams—up to four links at 3 or 6 Gbps—into a single MIPI CSI-2 interface for the host processor, while maintaining synchronized timing and bidirectional control across sensors.

Once the camera data is deserialized, it is delivered to the host processor as standard image streams, typically over the MIPI CSI-2 interface. From there, frames from multiple cameras are ingested in parallel by the system’s vision stack, which may include ISP processing, synchronization logic, and AI inference models for tasks such as object detection, depth estimation, tracking, and scene understanding.

Because GMSL streams arrive with consistent timing, applications can reliably fuse data across cameras and with other sensors like LiDAR or inertial measurement units (IMUs) that monitor motion and orientation, empowering the robot with a coherent, real-time understanding of its environment. For development and validation, a full signal chain can be implemented using evaluation platforms that pair serializer-side camera modules with deserializer EVKs such as the MAX96724-BAK-EVK# (Figure 3), enabling developers to test multi-camera synchronization, bandwidth performance, and processor integration before transitioning to custom hardware designs.

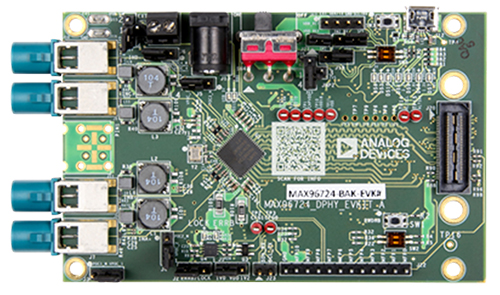

Figure 3: The MAX96724-BAK-EVK# evaluation platform provides a development reference for robotic vision systems, aggregating multiple GMSL2 camera streams from serializers like the MAX96717 and delivering synchronized MIPI CSI-2 output to a central processor. (Image source: Analog Devices, Inc.)

Mature technology and ecosystem

GMSL has evolved through multiple generations, each expanding bandwidth, range, and system flexibility while maintaining the same core SerDes-based architecture:

• GMSL1 introduced a robust, automotive-grade solution for transmitting high-speed video over long distances, primarily supporting HD-class camera systems.
• GMSL2 significantly increased bandwidth and scalability, enabling multi-camera 1080p and 4K systems with tighter synchronization, lower latency, and more efficient multi-stream aggregation—making it the dominant generation in modern ADAS and robotics platforms.
• GMSL3 builds on this foundation with further improvements in data rate, system flexibility, and support for next-generation high-resolution sensors and increasingly complex multi-sensor architectures.

GMSL is backed by a mature ecosystem that supports scalable, production-ready deployments. Robotics developers can take advantage of a full stack of validated components designed to work reliably under real-world conditions, including cameras, compute modules, cables, connectors, and software/driver support. This ecosystem reduces integration complexity, shortens development cycles, and lowers the barrier to scaling from early prototypes to production systems.

Conclusion

As robotic systems evolve toward higher sensor density and real-time autonomy, connectivity architectures must scale without compromising determinism or reliability. By simplifying cabling, preserving deterministic timing, and enabling distributed sensor placement, GMSL-based architectures allow robotic designers to increase perception capability without fundamentally redesigning the compute or synchronization model. This provides a key building block in the transition toward high-density, real-time robotic vision systems.
