AC65001-NM NMO-Mount Antennas

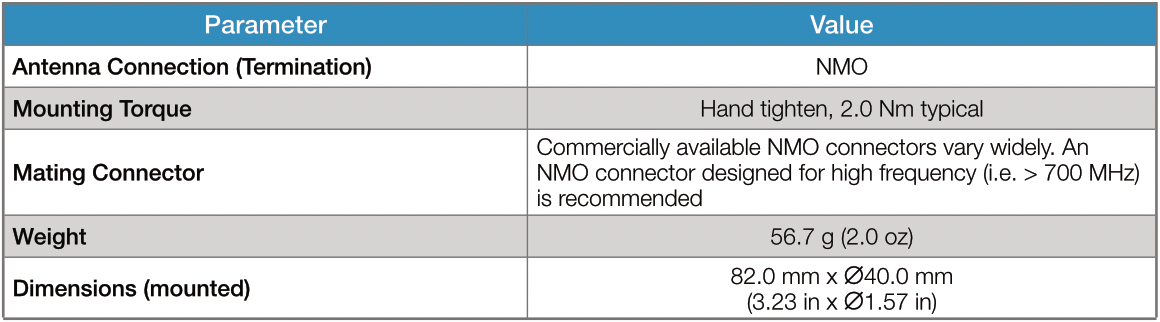

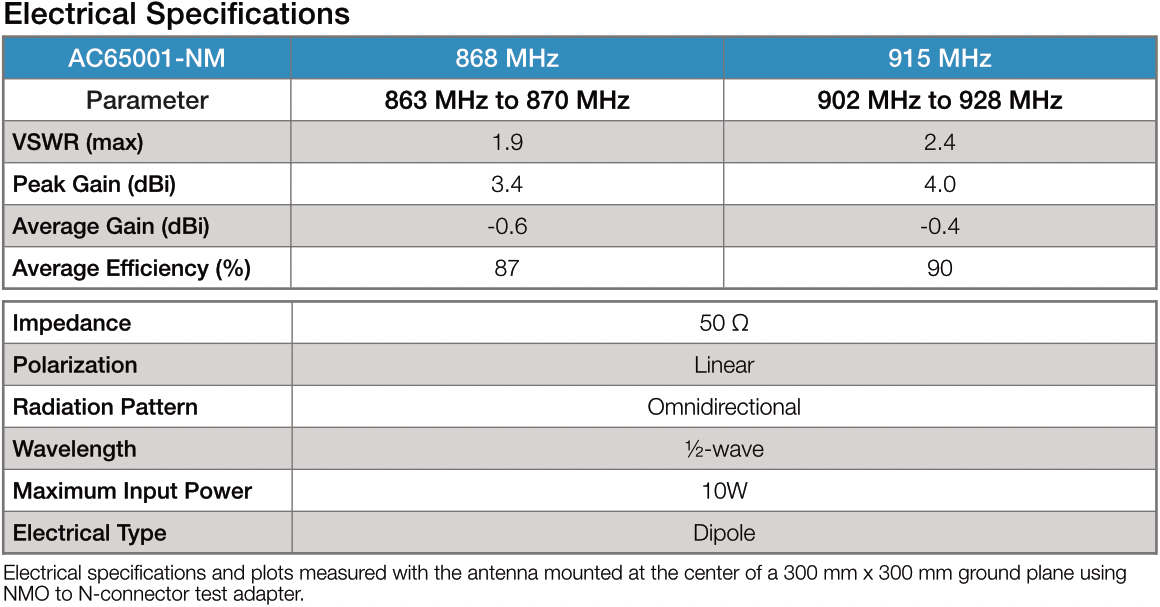

The Antenna Company AC65001-NM NMO-connector dome antennas provide robust, compact, outdoor, omnidirectional 868 MHz and 915 MHz ISM antenna solutions for applications like LPWA, LoRaWAN, and Wi-Fi HaLow. Each antenna supports IP67 and IP65 ingress protection as well as IK-10 impact resistance, all under an attractive, UV-resistant dome. The 82 mm x 40 mm mounted size combines excellent antenna performance with a compact, low-profile form factor that fits in many applications, from mobile/vehicular roof-mount to fixed vending machine use, and supports use on both metal enclosures and in free space, including non-metallic enclosures.

The AC65001-NM compact dome antennas are available in two colors, black and white, with a fine matte finish. Similar-performing N-connectors (AC65001-NJ, AC65001-2NJ) and cabled (AC67001) compact dome antennas are also available.
