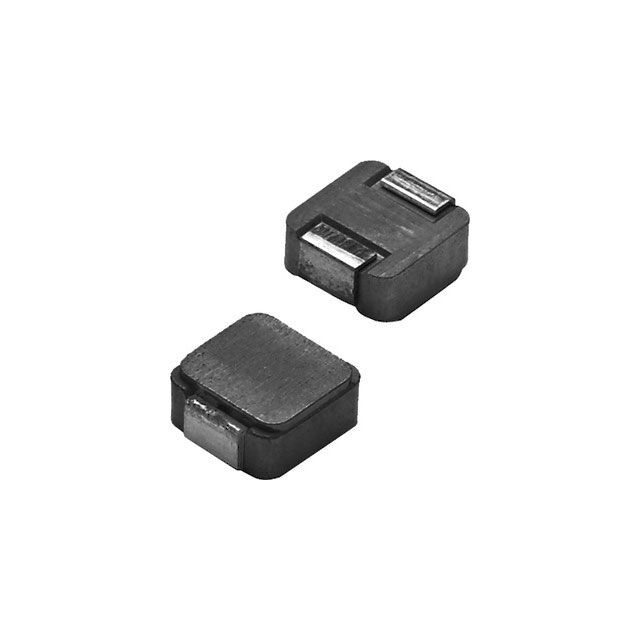

IHLP1212-EZ-1Z IHLP® Power Inductors, Low DCR Series

Vishay Intertechnology IHLP low-profile, high current inductor in the compact 1212 case size is suited for space-constrained commercial applications. The Vishay Dale IHLP1212-EZ-1Z offers comparable electrical performance to larger devices in a compact 3.0 mm x 3.0 mm footprint with three profile options: 1.2 mm, 1.5 mm, and 2.0 mm. Delivering high efficiency, the IHLP1212-EZ-1Z offers typical DCR from 8.6 mΩ to 50.4 mΩ and a wide range of inductance values from 0.22 µH to 3.3 µH. The inductor provides rated current to 14.3 A, operates over a temperature range of -55°C to +125°C, and handles high transient current spikes without saturation. Offering improved performance over ferrite-based technologies, the IHLP1212-EZ-1Z features a robust powdered iron body that completely encapsulates its windings – eliminating air gaps and magnetically shielding against crosstalk to nearby components – while its soft saturation curve provides stability across the entire operating temperature and rated current ranges. Packaged in a 100% lead (Pb)-free shielded, composite construction that reduces buzz noise to ultra-low levels, the inductor offers high resistance to thermal shock, moisture, and mechanical shock. The device is RoHS compliant, halogen-free, and Vishay Green.
