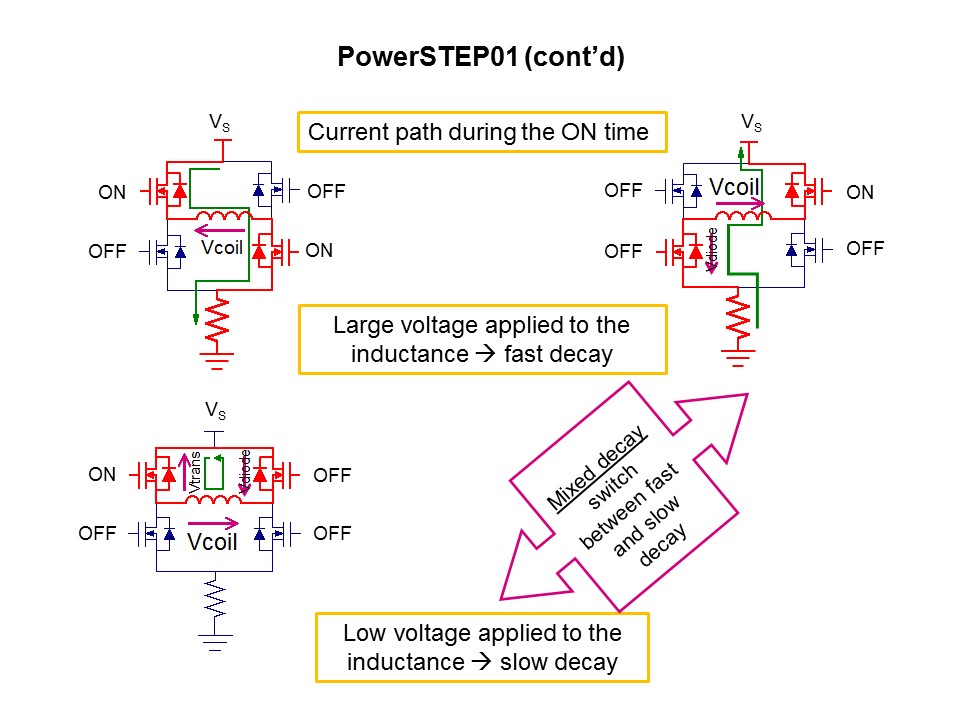

The schematics on this slide illustrate how the MOSFET must be turned on or off to perform the decay. When a slow decay occurs, the current recirculates in the high side or low side of the bridge. When the fast decay occurs, a large voltage is applied. A mixed decay is when both slow and fast decay must be performed in the same time slot.
PTM Published on: 2015-10-27
