VL-EPH-V6 Applications

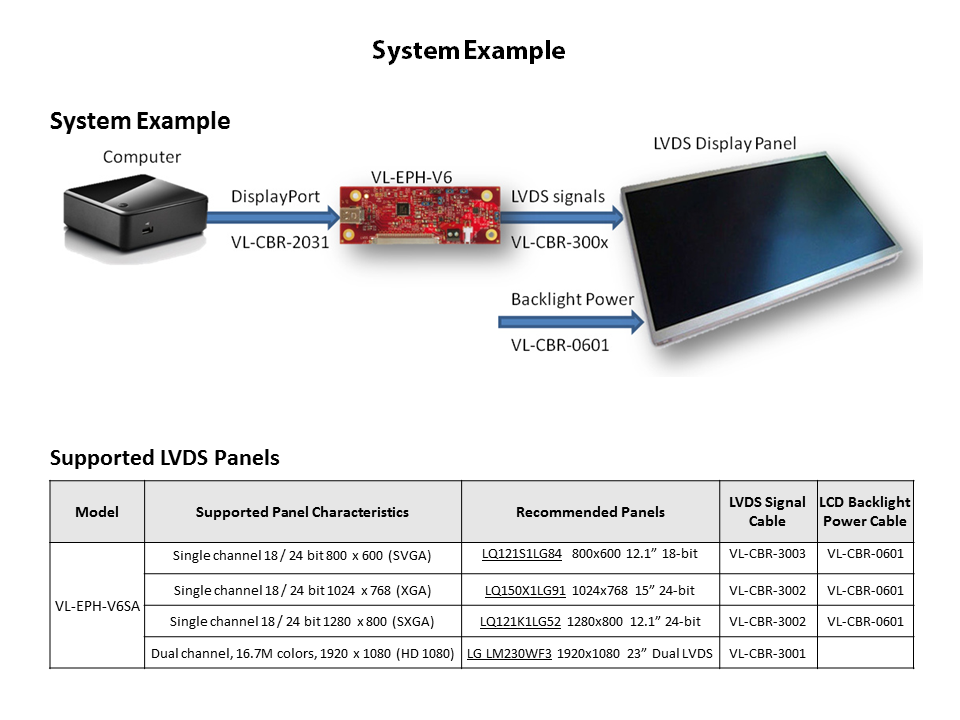

Shown here is a typical system application that utilizes the EPM-V6. The DisplayPort output connects to the V6 input connector. The V6 performs the necessary video translation and outputs the LVDS signals to the LCD or LED display panel. The table at the bottom of the page shows the standard panel characteristics supported by the V6. Any panels with those characteristics should work with no modifications. Listed are the DigiKey LVDS panels that have been tested for compatibility with the V6. VersaLogic supplies LVDS and backlight cables to support the specific LVDS display panels offered by DigiKey.
